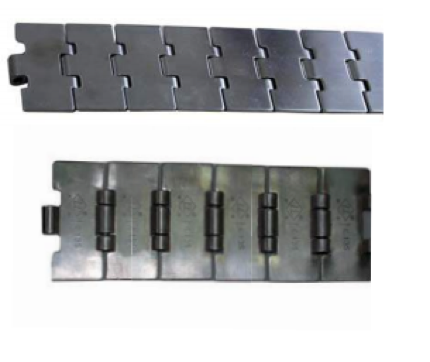

815 CHAIN OF SAUCERS WITH STAINLESS STEEL HINGE
- Main application: Transportation for glass bottles and heavy-duty items
- Material: 304/430 stainless steel
- Maximum speed: 80m/min, lubrication, 50m/min dried.
- Workload: 2250N, maximum transportation measure: 15 mt.
- The sprockets are the same as those in the 821 chain
- Chain lubrication is recommended.

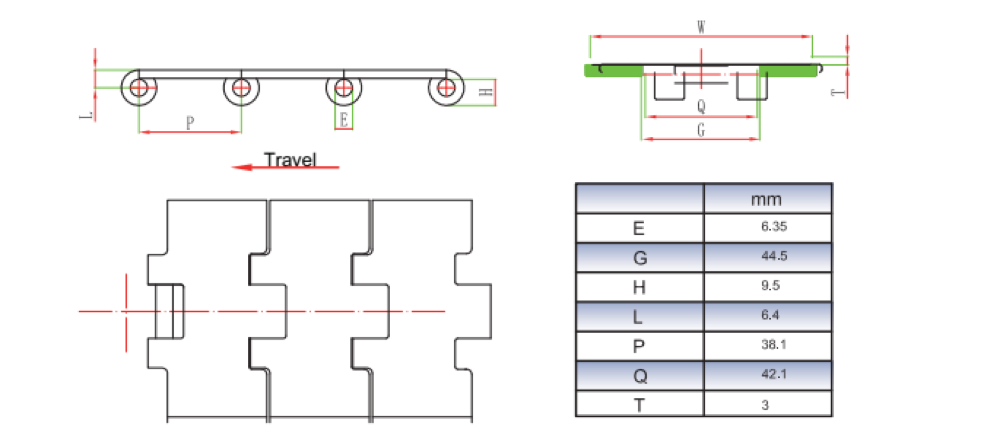

| Code | Width (mm) | Weight (kg/m) | Minimum bending radius |
| SS812-K300 | 76.2/td> | 2.40 | 150 |
| SS812-K325 | 82.6 | 2.54 | 150 |
| SS812-K350 | 88.9 | 2.68 | 150 |
| SS812-K400 | 101.6 | 2.97 | 150 |
| SS812-K450 | 114.3 | 3.25 | 150 |
| SS812-K500 | 127 | 3.41 | 150 | SS812-K600 | 152.4 | 4.09 | 150 | SS812-K750 | 190.5 | 4.95 | 150 |
